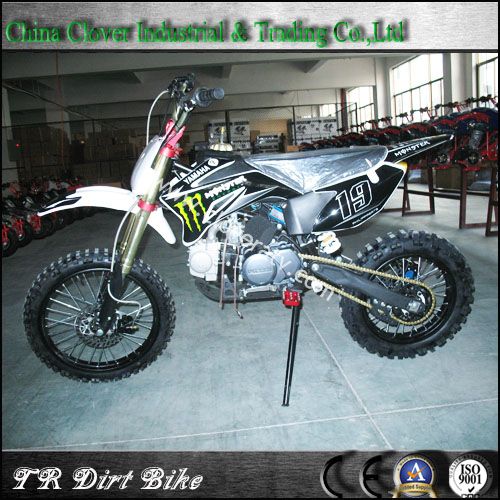

140cc TR SSR Dirt Bike Pit Bike Motorcycle

Engine:140cc YX engine,oil cooled,single cylinder,4 stroke,kick start

Bore X Stroke:55X59.5MM

Max Power:8.5KW/7500R/MIN

Max torquer:9.8N.M/5000R/MIN

Transmission:Manual clutch,4 speed 428# chain

Ignition mode:CDI

Frame:heavy duty chrome girder cradle frame

Swingarm:new design steel swingarm

Handlebr:Steel handlebar

Body Fairing:TTR style

Exhaust: normal exhaust pipe

Front suspension:High performance upside down front fork absorber

Rear suspension:High performance rear shock absorber

Brake system:Front and rear hydraulic disc brake

Max load:150KGS

Tank capacity: 4L

Wheels:steel wheels,Front 14” rear 12”

Bike size:1630X760X1090MM

Seat height:820MM

Wheel base:1200MM

Carton size:1520X380X760MM

Container loading quantity:

63PCS/20FT,135PCS/40FT,157PCS/40HQ

Why Us:

1.Our experience:

Over 10 year experience in manufacturing ATVs,Bikes,our company has been estabilshed as a one of

the largestas one and most renowned factory in China.We want to encourage you to be the part of our

history.

2.English Manual:

We have Mannual to show you along with the machine.So you can learn this from the existing document to deeper your knowledge and understanding.

3.Strict quality control:

Compare with others machine manufactures of China,We do NOT skip any step of the manufacturing process to ensure that haven’t any function problem of our machines.

4.Through all the ways,we will guarantee the service quality and ensure you will be well helped anything anywhere.
