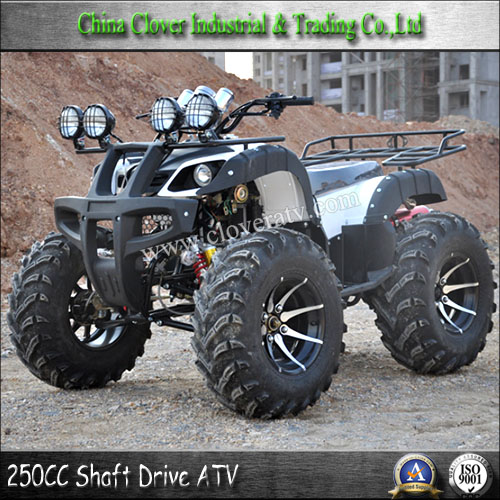

Popular Farm ATV 250CC Hunting ATV with LED Speedometer

Engine Type

Single cylinder, water-cooled, 4-stroke

Engine Displacement

250cc

Bore & Stroke

67x65mm

Compression Ratio

10:1

Carburetor

Carburetor

Max. Power Output

12kW/(6500r/min)

Max. Torque

17.5N.m/(5500r/min)

Ignition

CDI

Starter

Electric start

Drive Train

Clutch

Manual

Gearbox

5-speed(four forward gears and one reverse gear, plus neutral gear)

Final Drive

Shaft

Dimensions and Weight

Length x Width x Height

2,080 x 1,240 x 1,300mm

Wheelbase

1,180mm

Front Tread

960mm

Rear Tread

780mm

Seat Height

890mm

Foot Step to Seat

480mm

Fuel Capacity

7.8L, metal tank

Dry Weight

220kg

Wheels,Suspension and Brakes

Wheels Front

12 inch alloy rim

Wheels Rear

12 inch alloy rim

Tyres Front

AT25x8-12

Tyres Rear

AT25x10-12

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Double hydraulic disc brakes

Brakes Rear

Double hydraulic disc brakes

Packing

Carton Size

152 x 82 x 83cm(12 inch wheel are loaded one by one.)

G.W./N.W.

240/220kg

Container Load

20pcs/42pcs/48pcs, no spare wheel

20pcs/42pcs/47pcs, with spare wheel
