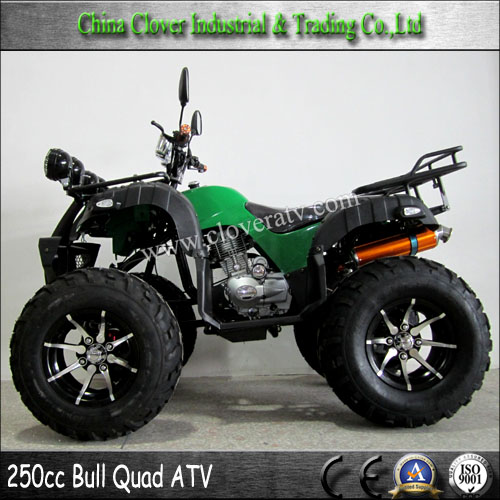

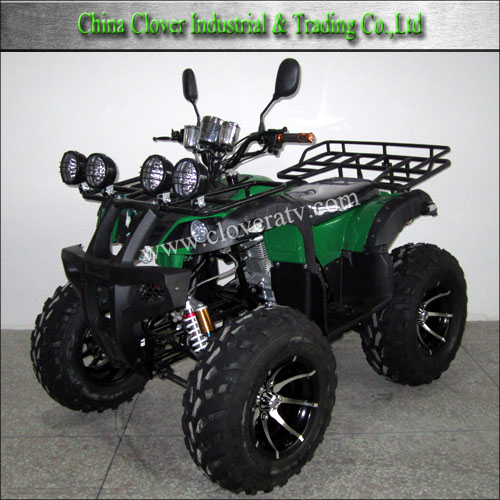

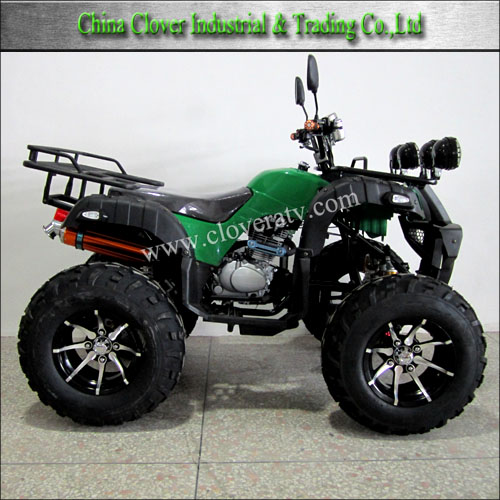

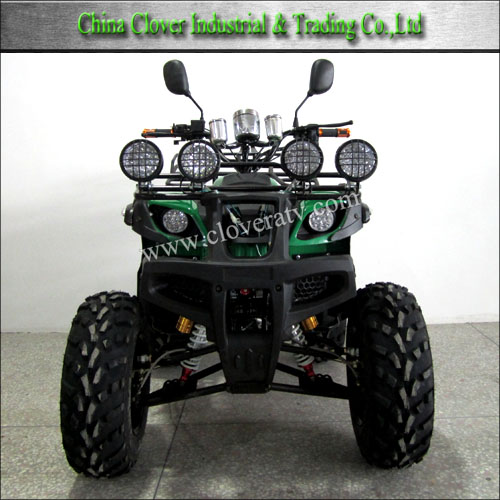

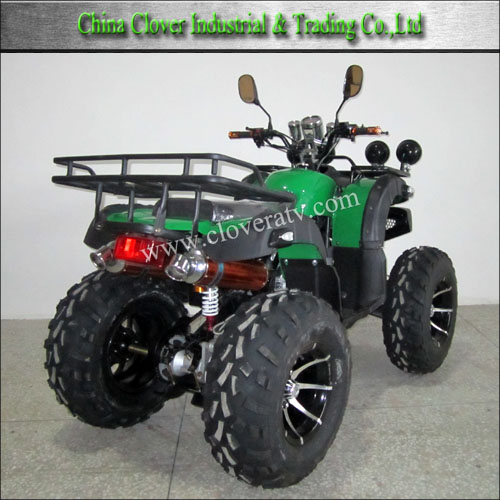

atv 250cc 4x4 250cc automatic atv 250cc 4x4 atv

Engine Type

Single cylinder, air-cooled or water-cooled, 4-stroke, ZongShen brand

Engine Displacement

250cc

Bore & Stroke

67x65mm

Compression Ratio

10:1

Carburetor

Carburetor

Max. Power Output

12kW/(6500r/min)

Max. Torque

17.5N.m/(5500r/min)

Ignition

CDI

Starter

Electric start

Drive Train

Clutch

Manual

Gearbox

5-speed(four forward gears and one reverse gear, plus neutral gear)

Final Drive

Chain

Dimensions and Weight

Length x Width x Height

1,830x1,060x1,370mm

Wheelbase

1,210mm

Front Tread

930mm

Rear Tread

760mm

Seat Height

890mm

Foot Step to Seat

480mm

Fuel Capacity

7.8L, metal tank

Wheels, Suspension and Brakes

Wheels Front

10 inch alloy rim / 21 inch

Wheels Rear

10 inch alloy rim / 20 inch

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes F/R

Dual drum brakes(Hand operated) / Hydraulic disc brake(foot operated)

Packing

Carton Size

1,520x820x830mm

G.W./N.W.

184/164kg

Container Load

22pcs/44pcs/66pcs%3
