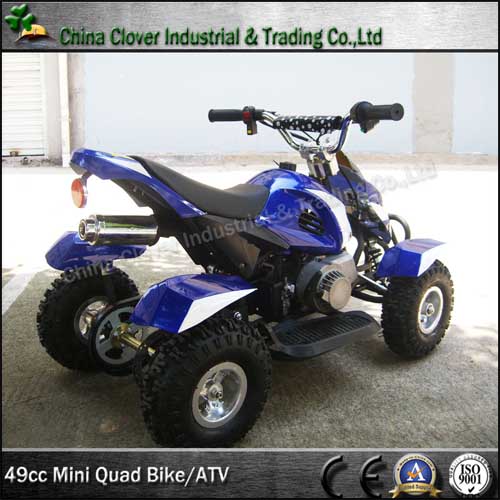

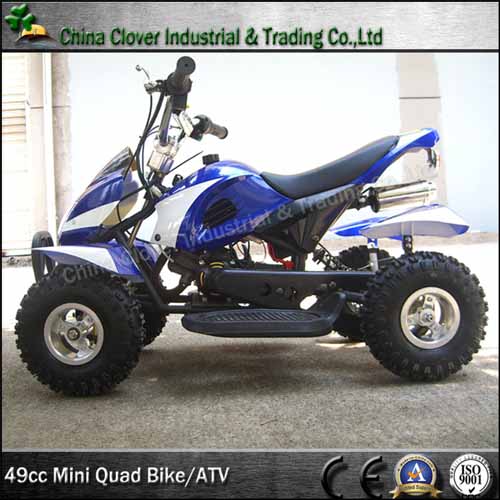

Product Name : 49CC Mini ATV Quads Bike 49CC Motor with CE Certificates
Product ID : CATV-49-2
Warranty Period : 24 Month
Certificates : CE & EN71 & ISO
Vehicle Diamension : 106 x 60 x 67 cm
Wheel Size : 4" / 6"
Start system : Pull start / Pull start + Electric start
Directions

                                     CE 49cc Mini Quad ATV

Engine:

l          49cc, 1-cylinder, 2 stroke,air-cooled,

l          Max power: 2kw/700rpm

l          Starting system: pull start + electric

Chassis:

l          Brakes (Front/rear): disc brake

l          Absorber (front/rear): spring  absorber

l          Tires:4" or 6"(Electric start)

l          Drive train: Chain     Fuel capacity: 1.5L

Dimensions:

l          Wheel base: 710mm

l          Min ground clearance:140mm

l          Max speed: 45-55km/h

l          Max load capacity: 85Kgs

Packing:

l          N.W: 34kg    G.W:38kg

l          Dimensions:(L*W*H):106 x 60 x 67 cm

l          Carton sizes:990x570x510mm

Conveyance:

Qty/20Fcl:110pcs     Qty/40HQ:240pcs
