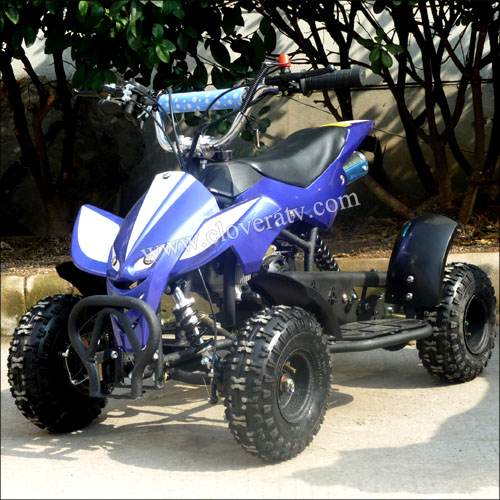

Product Name : Chinese Professional Gas Powered 49CC Mini ATV Quads Bike for Children
Product ID : CATV-49
Warranty Period : 24 Month
Certificates : CE & EN71 & ISO
Products size : 1000×600×650mm
Tires(F/R) : 4.10x10-4/4.10x10-4
Start system : Pull start / Pull start + Electric start
Directions

               Fashion 2 Stroke 49cc Mini Kids ATV

Engine :

l          49CC, 2-stroke, single cylinder, air-cooling

l          Starting system: Pull start and electric start

l          Max. torque and rotate speed: 3.5nm / 6000rpm

Chassis:

l          Brakes (Front/rear): disc

l           Absorber (front/rear):spring - absorber

l          Tires(F/R): 4.10x10-4/4.10x10-4

l          Fuel capacity: 1L

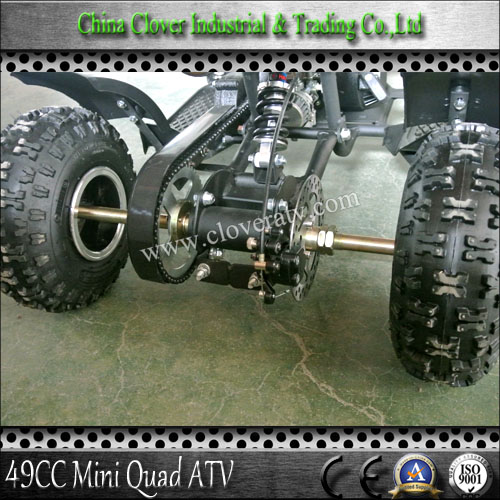

l          Drive train: chain

Dimensions:

l          Seat height: 500mm   Wheel base:600 mm

l          Ground clearance: 70mm

l          Max speed: 45km/h

l          Max load capacity: 100Kgs

Packing:

l          G.W:35kgs  N.W:30KGS

l          Products size:1000×600×650mm

l          Carton size:990×580×500mm

Conveyance:

l          Qty/20Fcl: 110pcs    Qty/40HQ: 240pcs
