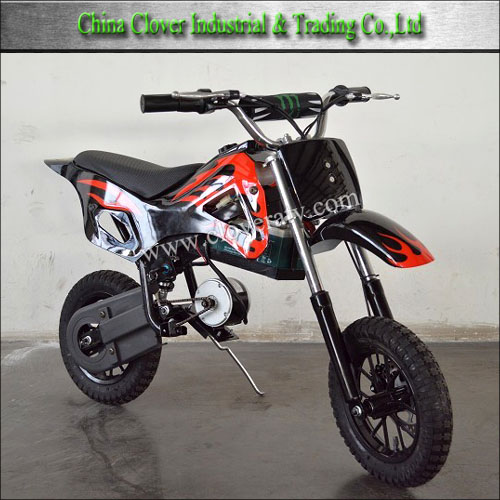

Battery Kids Mini Motor Bike 250W
350w 36v Electric Mini Dirt Bike
Product Name : High Quality Electric 500W Dirt Bike 36V Motor Bike with 10 inch Wheel
Product ID : CEDB49-1
Warranty period : 24 Month
Certificates : CE & EN71 & ISO
Output : 250w / 350w / 500w / 800w
Voltage : 24VDC / 36VDC
Battery capacity : 2pcs/3pcs 12Ah 12V Lead-acid Battery
Directions

          250W / 350W / 500W / 800W Battery Dirt Bike


Motor:

1. Output:250w / 350w / 500w / 800w

2. Voltage:24VDC / 36VDC      Rated current:12A

3. Battery capacity: 2pcs/3pcs 12Ah 12V Lead-acid Battery

4. Discharge time: 3-5H      Charge time: 4-6H

5. Recharge time:>200times

Chassis:

1. Brakes : Disc

2. Transmission: Chain
3. Absorber (rear): Adjustable shock

4. Drive train: Chain      Fuel capacity:1.5L

5. Tires(Front/Rear):12.5x2.75/12.5x2.75 (Big Wheel: 2.5x10 / 2.5x10)

Dimensions:

1. Seat height: 56cm(Big wheel:64cm)

2. Wheel base: 86cm(Big wheel:83cm)

3. Ground clearance: 18cm

4. N.W: 42kg      G.W:45kg

5. Carton sizes:1070 x 290 x 580mm(Big wheel:1100 x 270 x 560mm)

Other:

Max speed: 15-20km/h     Max load capacity: 90Kgs

Container:

Qty/20Fcl:168pcs            Qty/40HQ:396pcs
