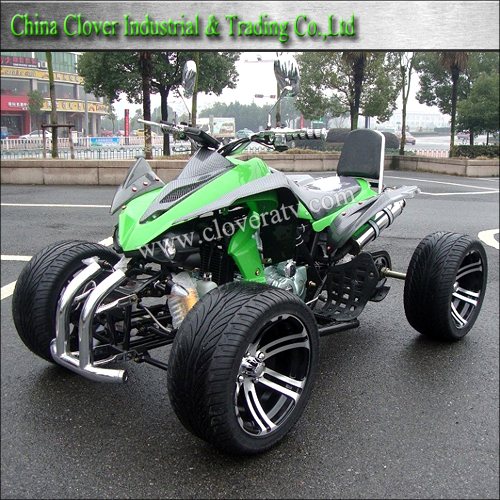

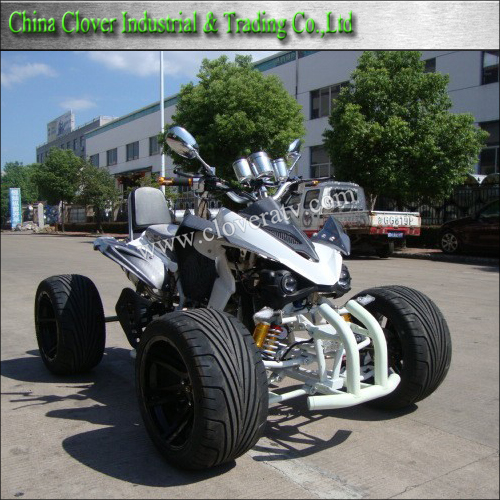

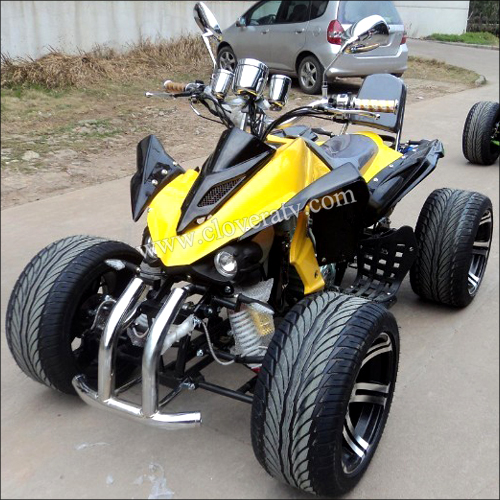

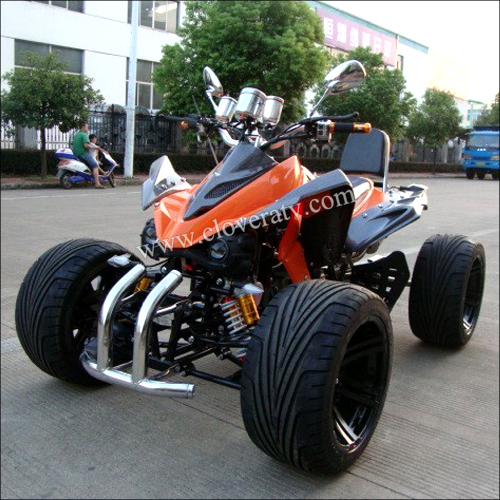

New EEC 250CC Road Legal Racing ATV with Two Seat

Product Name : New EEC 250CC Road Legal Racing ATV with Two Seat

Product ID : CRATV-250-1

Warranty Period : 24 Month

Displacement : 250cc

Engine Type : 4 Stroke

Fuel : Gas / Diesel

Transmission System : Chain Drive

Directions

250cc Racing ATV Road Legal Bike

Engine
Engine Type	Single cylinder, water-cooled, 4-stroke, manual
Engine Displacement	250cc
Carburetor	Carburetor
Max. Power Output	12kW/(6500r/min)
Max. Torque	17.5N.m/(5500r/min)
Ignition	CDI
Starter	Electric start
Drive Train
Clutch	Manual
Gearbox	5-speed(four forward gears and one reverse gear, plus neutral gear)
Final Drive	Chain
Dimensions and Weight
Length x Width x Height	2,020x1,210x1,260mm
Wheelbase	1,400mm
Front Tread	970mm
Rear Tread	970mm
Seat Height	750mm
Foot Step to Seat	480mm
Fuel Capacity	7.8L, metal tank
Dry Weight	164kg
Max. Speed	70km/h
Wheels, Suspension and Brakes
Wheels Front	14 inch iron rim / 14 inch iron rim
Tyres F/R	270/30-14 / 270/30-14
Suspension Front	Independent double-wishbone / Swing arm with single shock
Brakes Rear	Dual hydraulic disc brakes / Hydraulic disc brake
Packing
Carton Size	197x122x97cm
G.W./N.W.	184/164kg
Container Load	8pcs/18pcs/18pcs
