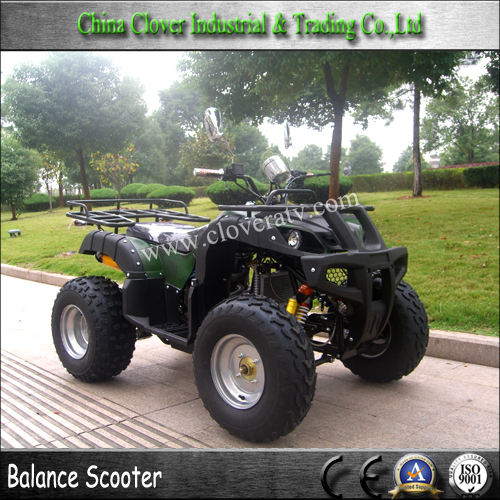

Fast Speed 250CC Sport ATV with Alloy Exhaust Pipe

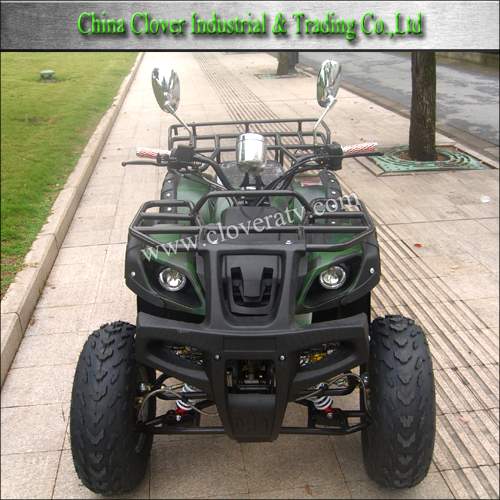

Hunting 250CC ATV Sport ATV with CE
Product Name : Electric Start 250cc Sport ATV Farm Quad bike with CE
Product ID : CSATV-250-1
Warranty Period : 24 Month
Displacement : 250cc
Engine Type : 4 Stroke
Start mode : Electric start
Transmission System : Chain Drive
Directions

                                  250cc Farm ATV 4 Stroke ATV

Engine

Engine Type

Single cylinder, air-cooled or   water-cooled, 4-stroke, ZongShen brand

Engine Displacement

250cc

Bore & Stroke

67x65mm

Compression Ratio

10:1

Carburetor

Carburetor

Max. Power Output

12kW/(6500r/min)

Max. Torque

17.5N.m/(5500r/min)

Ignition

CDI

Starter

Electric start

Drive Train

Clutch

Manual

Gearbox

5-speed(four forward gears and one   reverse gear, plus neutral gear)

Final Drive

Chain

Dimensions and Weight

Length x Width x Height

1,830x1,060x1,370mm

Wheelbase

1,210mm

Front Tread

930mm

Rear Tread

760mm

Seat Height

890mm

Foot Step to Seat

480mm

Fuel Capacity

7.8L, metal tank

Wheels, Suspension and Brakes

Wheels Front

10 inch alloy rim / 21 inch

Wheels Rear

10 inch alloy rim / 20 inch

Suspension Front

Independent   double-wishbone

Suspension Rear

Swing arm   with single shock

Brakes F/R

Dual drum brakes(Hand operated) / Hydraulic disc brake(foot operated)

Packing

Carton Size

1,520x820x830mm

G.W./N.W.

184/164kg

Container Load

22pcs/44pcs/66pcs

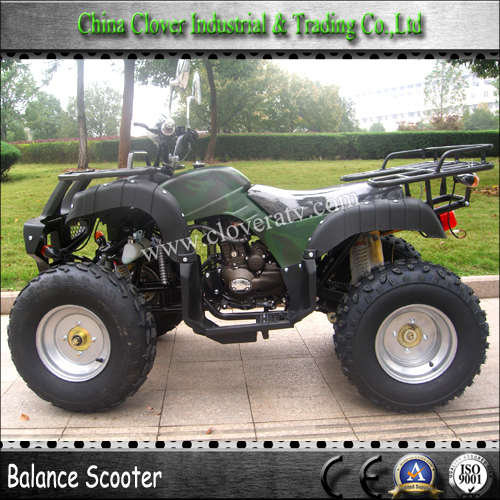

Aluminum Exhaust Pipe Hunting 250CC ATV.jpgSport 250CC Quad Bikes 250CC ATV.jpg

Automatic Quad ATV Bull 250CC ATV.jpg

Low Cost Sport Hunting Vehicle 250cc ATV with Horn.jpg
